Marcos Visit 2002

Technical

Length : 13' 7"
Engine : Buick 3.5 Litre V8 (Brabham Repco 3 litre V8 in race form)
Gearbox : Hewland 5 speed Transaxle
Layout : Rear-Mid Engined
Chassis : Wooden monoque design with steel subframe front and rear.
Max Speed :170+ mph
Suspension : Rocker arms to internally mounted shocks (front)
Independent (rear)

00_00023.jpg - 67043 Bytes

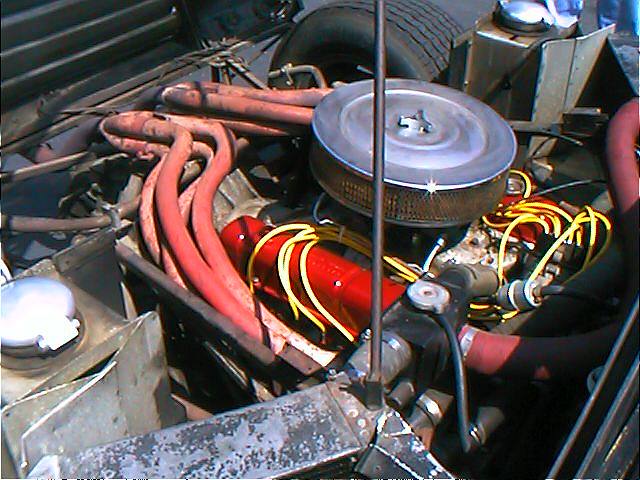

A Buick V8 replaced the Brabham Repco F1 V8 used in the race at Spa in 1968.

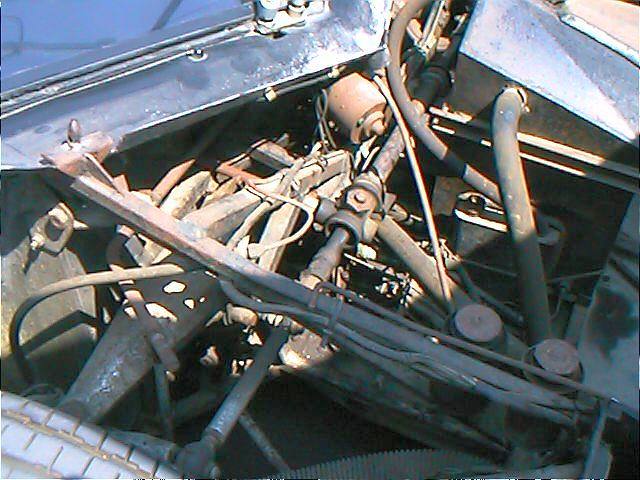

A view of the front suspension and steering
00_00022.jpg - 57120 Bytes

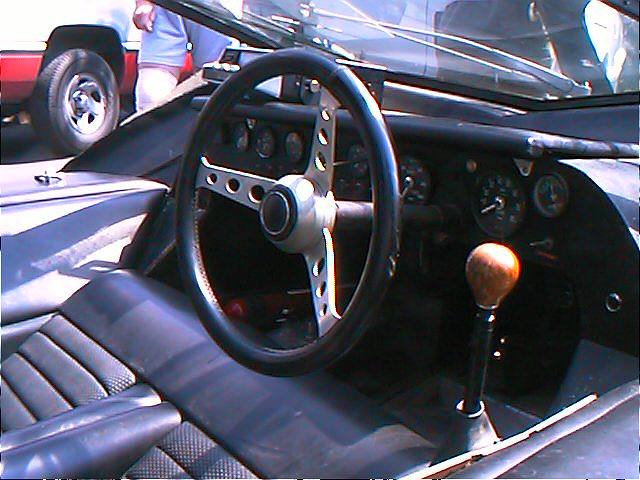

The dash - The 8 track was added (with headphones) by Tom Morris to combat the noise of the engine in LA traffic!

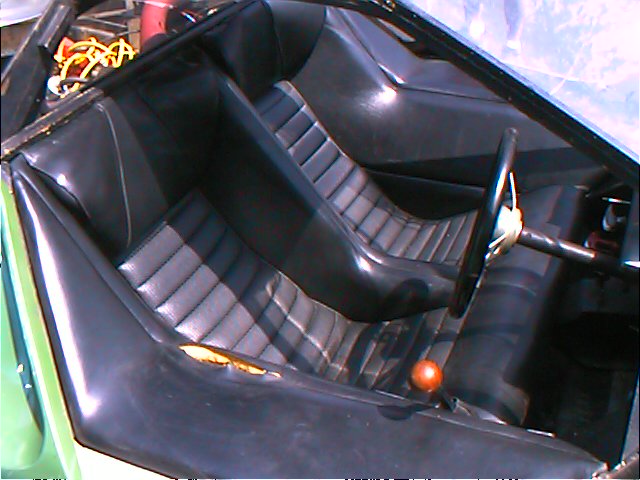

Comfortable seats, but a cramped driving position

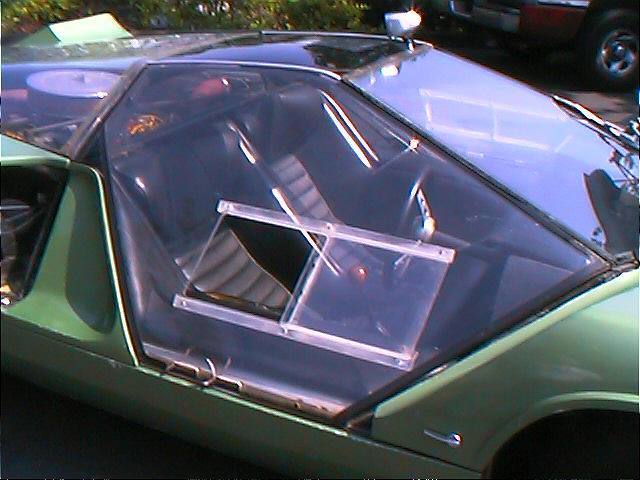

Excellent all-round visibility by any standards, let alone a mid-engined race car.
The Mantis XP has great visibility for any car, let alone a mid-engined sports-racer.

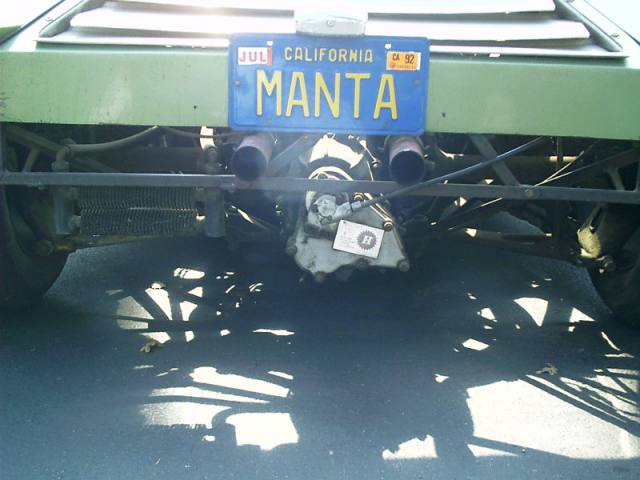

Shot of the rear end
A view of the rear suspension, exhaust and gearbox.- Photo Courtesy of Don Lattimer.
MANTISVISIT 027.jpg - 60285 Bytes
A view of the rear suspension.- Photo Courtesy of Don Lattimer.

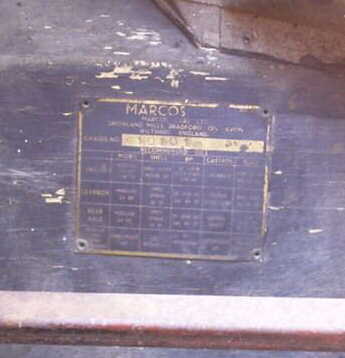

10101 - One of a kind.
Chassis number read 10101 - A unique car - Photo Courtesy of Don Lattimer.
